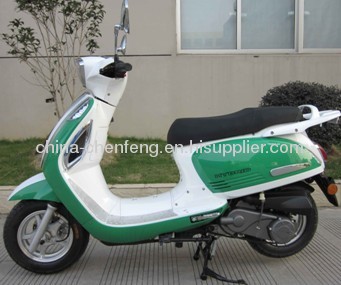

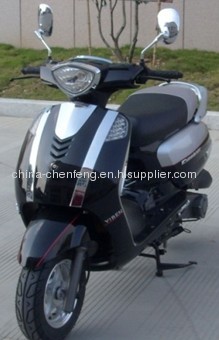

america DOT Hybrid scooter

Model: CFZ50T-4H
Place of Origin: Zhejiang,China (Mainland)
Hybrid: 50cc engine and 600W motor

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Trade Term:FOBProduction Capacity:1000/month
Payment Terms:L/C, T/TPacking:carton with steel...
Min. Order:10 Piece/PiecesDelivery Date:25 workdays
Means of Transport:Ocean

Overall dimensions (mm)1775(L)×670 (W)×1105(H)
Wheel base (mm)1290
Max speed (km/h)45
Electric motor Max. speed(km)39
Net weight (kg)99
Max load (kg)150
Front tire/Rear tire3.50-10 3.50-10
Brake styleF.Disk / R.Drum
Fuel tank(L)5.5
Engine stylesingle-cylinder, 4-stroke, air-cooled
Bore×stroke (mm)39.0×41.5
Max power (kw/rpm)2.8/7500
Max torque(Nm/rpm)2.5/6500
IgnitionCDI
Compression ratio10±0.5:1
Transmission typestrap
Spark plugA7RTC
Starting modeElectric start
Battery typeLithium
Motor typeDC brushless
Battery48V/20Ah
Input110/230V AC
Output59.2V DC/3A
Max charging current ampere3A
Travel distance(km)40
Rated power600 W
